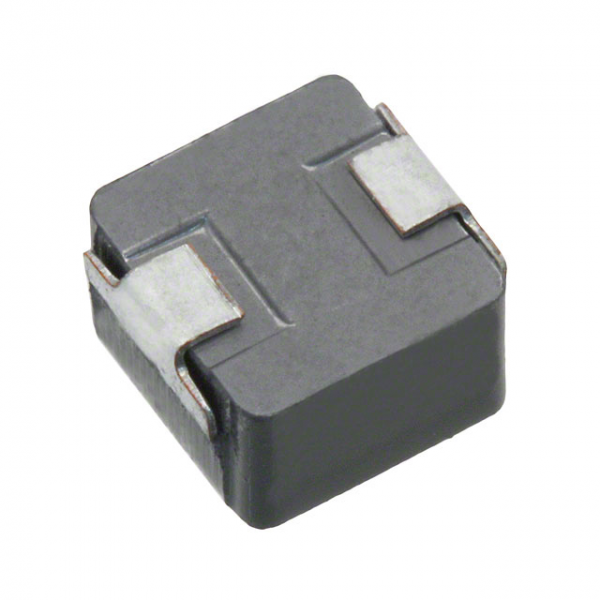

| Part Number | PCMC053T-R68MN |
|---|---|
| Part Status | Obsolete |
| Type | - |
| Material - Core | - |
| Inductance | 680nH |
| Tolerance | ±20% |
| Current Rating | 8.5A |
| Current - Saturation | 14A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 12 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.205" L x 0.185" W (5.20mm x 4.70mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
