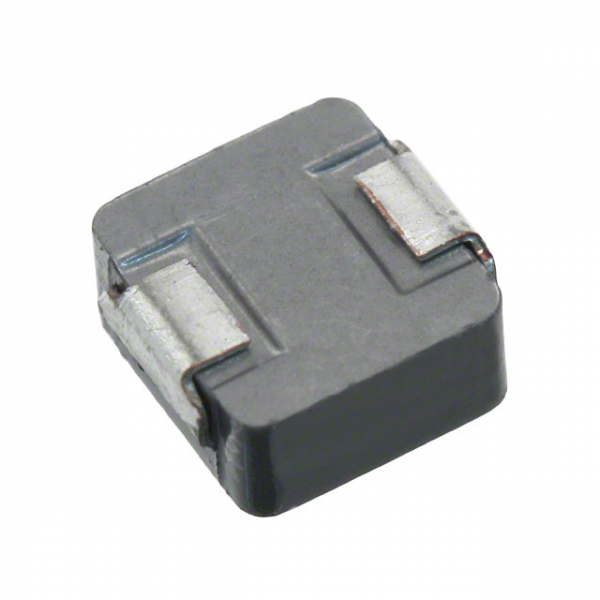

| Part Number | PCMC042T-R47MN |
|---|---|
| Part Status | Obsolete |
| Type | - |
| Material - Core | - |
| Inductance | 470nH |
| Tolerance | ±20% |
| Current Rating | 6A |
| Current - Saturation | 11.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 15.5 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
