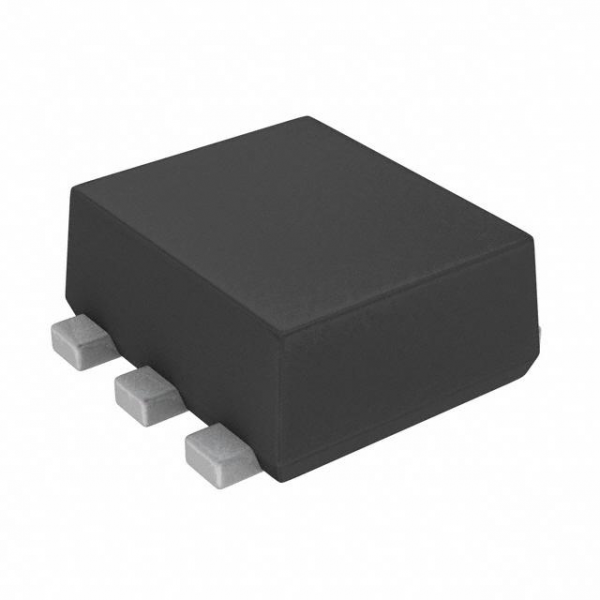

| Part Number | RAL035P01TCR |
|---|---|
| Part Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12V |
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Ta) |
| Drive Voltage (Max Rds On,Min Rds On) | 1.5V, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 22nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 2700pF @ 6V |
| Vgs (Max) | -8V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta) |
| Rds On (Max) @ Id, Vgs | 42 mOhm @ 3.5A, 4.5V |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TUMT6 |
| Package / Case | 6-SMD, Flat Leads |
Manufacturer: Rohm Semiconductor
Description: MOSFET P-CH 12V 2.5A TUMT6
In Stock: 0
Manufacturer: Rohm Semiconductor
Description: MOSFET P-CH 12V 3.5A TUMT6
In Stock: 0
Manufacturer: Rohm Semiconductor
Description: MOSFET P-CH 12V 4.5A TUMT6
In Stock: 0
