renesas electronics america designs and manufactures highly integrated semiconductor system solutions for automotive, mobile and pc/av markets.
| Part Number | RJK0328DPB-01#J0 |
|---|---|
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Ta) |
| Drive Voltage (Max Rds On,Min Rds On) | 4.5V, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 42nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 6380pF @ 10V |
| Vgs (Max) | ±20V |
| FET Feature | - |
| Power Dissipation (Max) | 65W (Tc) |
| Rds On (Max) @ Id, Vgs | 2.1 mOhm @ 30A, 10V |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | LFPAK |
| Package / Case | SC-100, SOT-669 |
Manufacturer: Renesas Electronics America

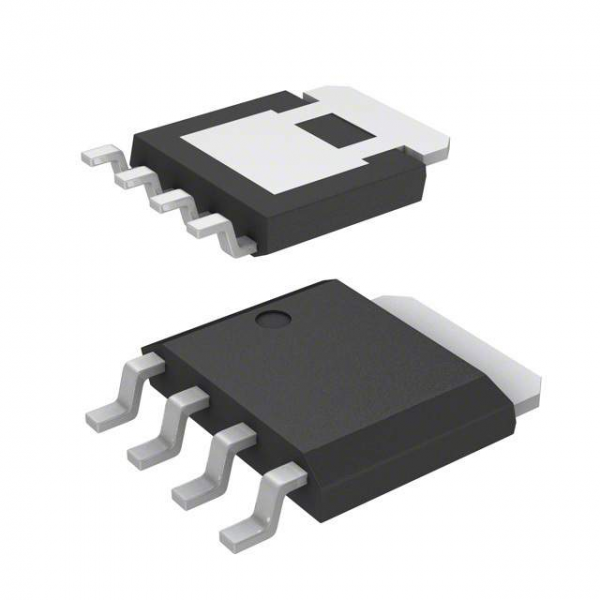

Description: MOSFET N-CH 30V 60A LFPAK
In Stock: 0
