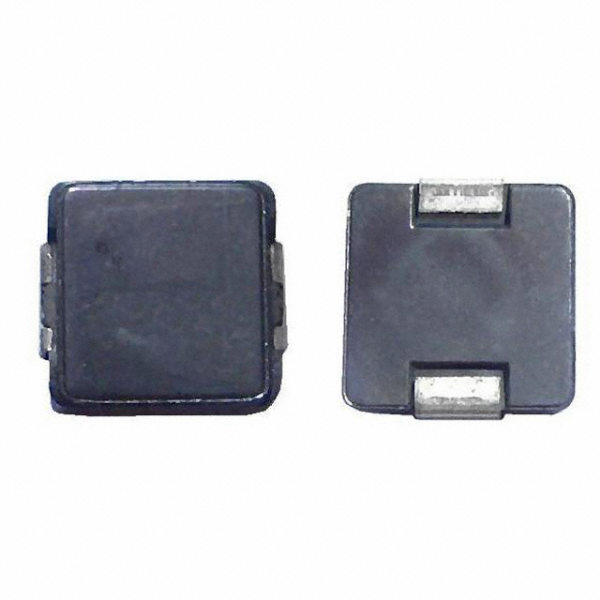

| Part Number | MPA7030-1R5-R |
|---|---|
| Part Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1.5µH |
| Tolerance | ±20% |
| Current Rating | 9.2A |
| Current - Saturation | 17.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 14.9 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 37MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 165°C |
| Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.268" W (7.30mm x 6.80mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
