hotenda.cn is an authorized distributor of eaton products. eaton is a manufacturer of passive components for circuit protection.

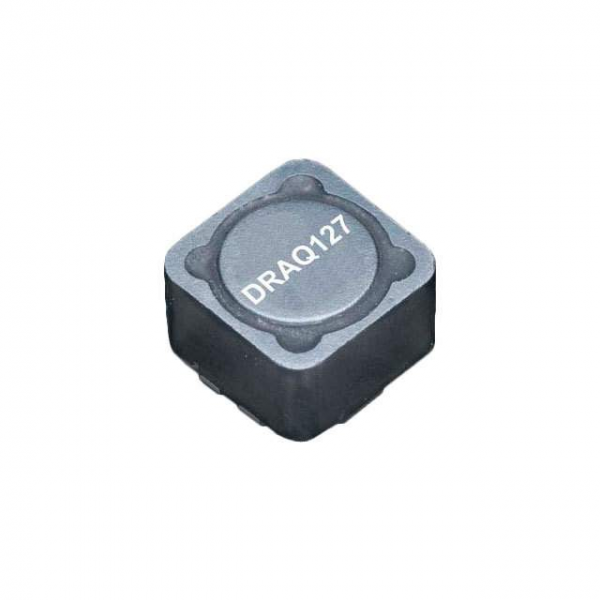

| Part Number | DRAQ127-150-R |
|---|---|
| Part Status | Active |
| Number of Coils | 2 |
| Test Inductance - Connected In Series | 59.6µH |
| Inductance - Connected In Parallel | 14.9µH |
| Tolerance | ±25% |
| Current Rating - Parallel | 4.83A |
| Current Rating - Series | 2.41A |
| Current Saturation - Parallel | 7.23A |
| Current Saturation - Series | 3.61A |
| DC Resistance (DCR) - Parallel | 32 mOhm Max |
| DC Resistance (DCR) - Series | 128 mOhm Max |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 165°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.480" L x 0.480" W (12.20mm x 12.20mm) |
| Height | 0.315" (8.00mm) |
