a wholly owned subsidiary of nippon chemi-con, united chemi-con (ucc) is north america's largest manufacturer and supplier of aluminum electrolytic capacitors.

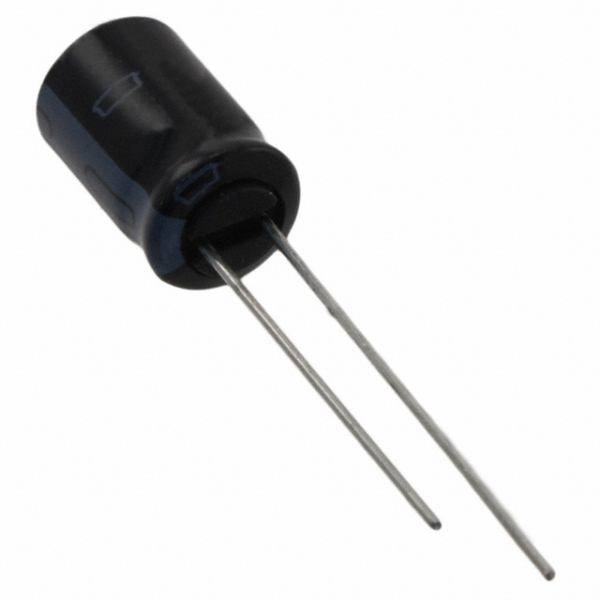

| Part Number | SMG25VB331M8X11LL |
|---|---|
| Part Status | Obsolete |
| Capacitance | 330µF |
| Tolerance | ±20% |
| Voltage - Rated | 25V |
| ESR (Equivalent Series Resistance) | 232 mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Applications | General Purpose |
| Ripple Current - Low Frequency | 440mA @ 120Hz |
| Ripple Current - High Frequency | 660mA @ 100kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
