a wholly owned subsidiary of nippon chemi-con, united chemi-con (ucc) is north america's largest manufacturer and supplier of aluminum electrolytic capacitors.

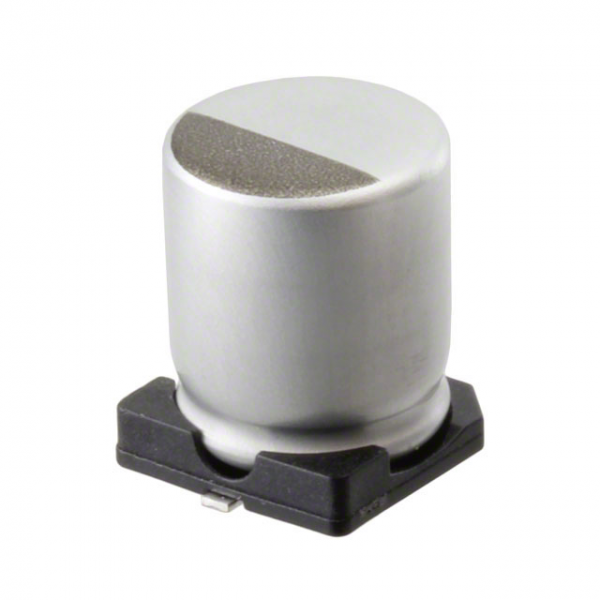

| Part Number | EMHB100ADA331MHA0G |
|---|---|
| Part Status | Active |
| Capacitance | 330µF |
| Tolerance | ±20% |
| Voltage - Rated | 10V |
| ESR (Equivalent Series Resistance) | 300 mOhm @ 400kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Applications | Automotive |
| Ripple Current - Low Frequency | 223.2mA @ 120Hz |
| Ripple Current - High Frequency | 240mA @ 100kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Manufacturer: United Chemi-Con
Description: CAP ALUM 330UF 20% 10V SMD
In Stock: 0
Manufacturer: United Chemi-Con
Description: CAP ALUM 470UF 20% 10V SMD
In Stock: 0
