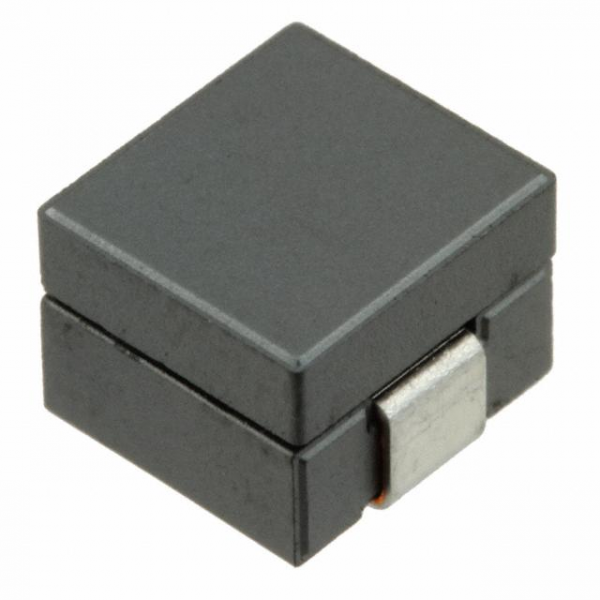

TDK Corporation VLB7050HT-R09M

Part Number
VLB7050HT-R09M
Manufacturer
TDK Corporation
Description
FIXED IND 90NH 36A 0.27 MOHM SMD
Lead Free Status / RoHS Status
Lead free / RoHS Compliant
Family
Fixed Inductors
TDK Corporation

TDK Corporation

hotenda.cn is an authorized distributor of tdk products including capacitors, inductors, ferrite chips, drivers and more.

In Stock 1250 pcs

  • Reference Price

    (In US Dollars)

  • 1 pcs

    0.84232/pcs

  • 500 pcs

    0.84232/pcs

  • 1,000 pcs

    0.78968/pcs

  • 2,500 pcs

    0.76335/pcs

  • 5,000 pcs

    0.73703/pcs
Total:0.84232/pcsUnit Price:
0.84232/pcs		Target price:
Quantity:
Product Parameter
Part NumberVLB7050HT-R09M
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance90nH
Tolerance±20%
Current Rating36A
Current - Saturation64A
ShieldingUnshielded
DC Resistance (DCR)0.27 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 125°C
Frequency - Test1MHz
Features-
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.264" L x 0.244" W (6.70mm x 6.20mm)
Height - Seated (Max)0.197" (5.00mm)
