lambda americas, inc. was founded in 1948 and headquartered in san diego, ca, the company is a leader in the design and manufacture of a wide range of ac-dc power supplies and dc-dc converters for industrial, cots, medical, telecom, datacom, and test & measurement applications worldwide.

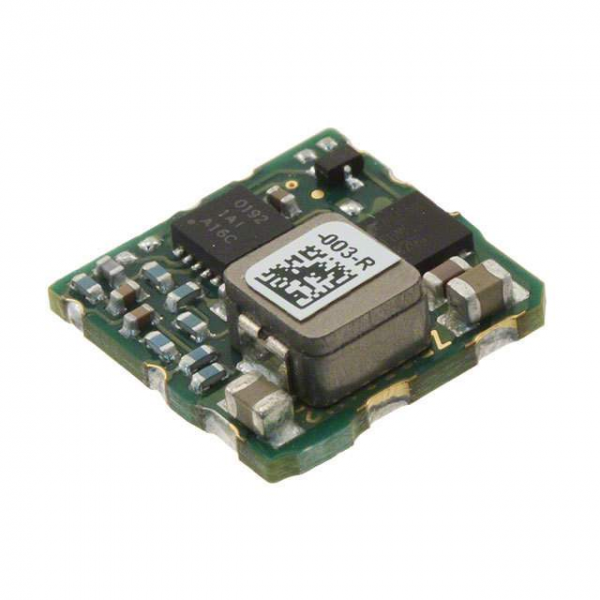

| Part Number | ICF12003A007V-003-R |
|---|---|
| Part Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 14V |
| Voltage - Output 1 | 0.7 ~ 5.5 V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A |
| Power (Watts) | 17W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, UVLO |
| Operating Temperature | -40°C ~ 115°C |
| Efficiency | 94% |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD Module |
| Size / Dimension | 0.48" L x 0.48" W x 0.18" H (12.2mm x 12.2mm x 4.5mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
Manufacturer: TDK-Lambda Americas Inc.
Description: DC/DC CONVERTER 0.7V-5.5V 3A SMD
