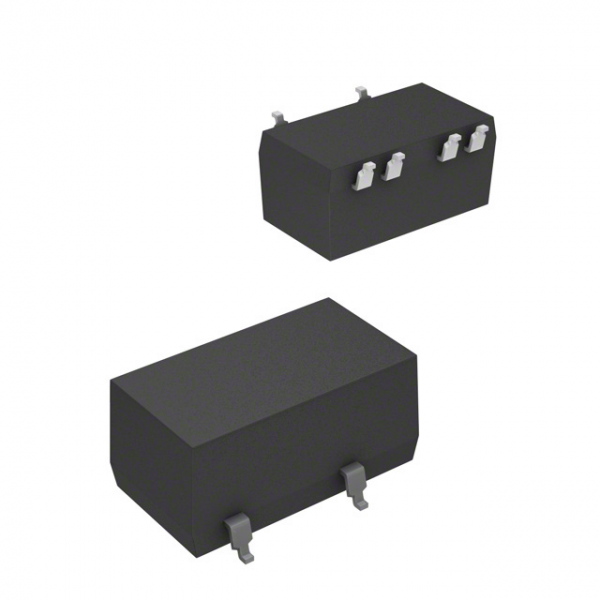

| Part Number | RZ-2405S/P-R |
|---|---|
| Part Status | Obsolete |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 21.6V |
| Voltage - Input (Max) | 26.4V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA |
| Power (Watts) | 500mW |
| Voltage - Isolation | 1kV (1000V) |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 70°C |
| Efficiency | 50% |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD Module, 6 Leads |
| Size / Dimension | 0.60" L x 0.32" W x 0.29" H (15.2mm x 8.2mm x 7.3mm) |
| Supplier Device Package | - |
| Control Features | - |
