portescap is a motion control business group. portescap specializes in advanced servo and step drive technologies to develop the highest performance and most cost-effective motion control solutions available.

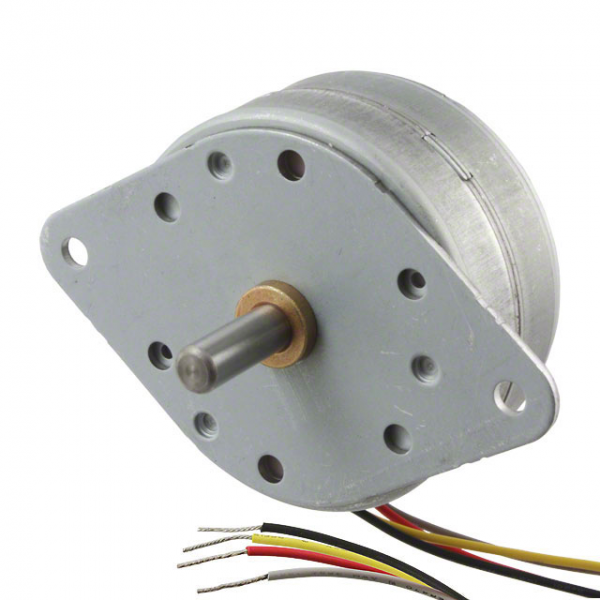

| Part Number | 55M048D1U |
|---|---|
| Part Status | Obsolete |
| Type | Permanent Magnet |
| Coil Type | Unipolar |
| Voltage - Rated | 5VDC |
| Current Rating | 0.96A |
| Steps per Revolution | 48 |
| Step Angle | 7.5° |
| Accuracy | ±15% |
| Torque - Holding (oz-in / mNm) | 23 / 163 |
| Size / Dimension | Round - 2.170" Dia (55.12mm) |
| NEMA Frame Size | - |
| Diameter - Shaft | 0.250" (6.35mm) |
| Length - Shaft and Bearing | 0.750" (19.05mm) |
| Mounting Hole Spacing | 2.630" (66.68mm) |
| Termination Style | Wire Leads |
| Operating Temperature | -20°C ~ 70°C |
| Coil Resistance | 5.2 Ohms |
| Features | Round Shaft |
