| Part Number | UWS1C331MCL1GS |
|---|---|
| Part Status | Active |
| Capacitance | 330µF |
| Tolerance | ±20% |
| Voltage - Rated | 16V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Applications | High Temperature Reflow |
| Ripple Current - Low Frequency | 270mA @ 120Hz |
| Ripple Current - High Frequency | 351mA @ 10kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Manufacturer: Nichicon

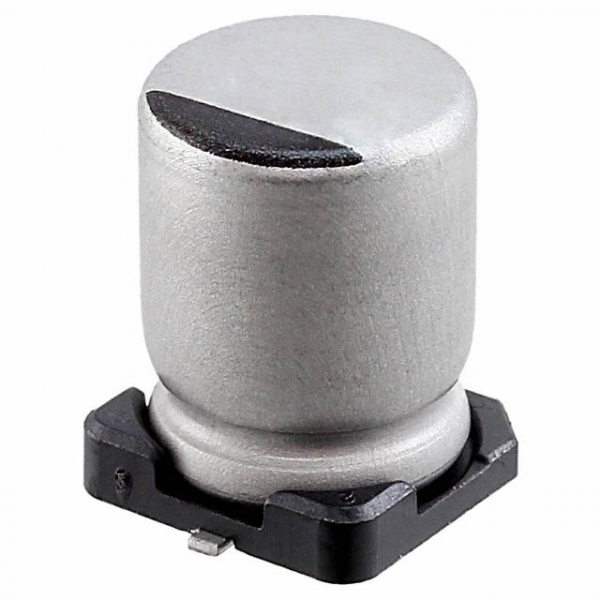

Description: CAP ALUM 330UF 20% 16V SMD
