nichicon focuses on the development, manufacture and sale of the capacitors and other electronic components essential to a broad range of electronic devices.

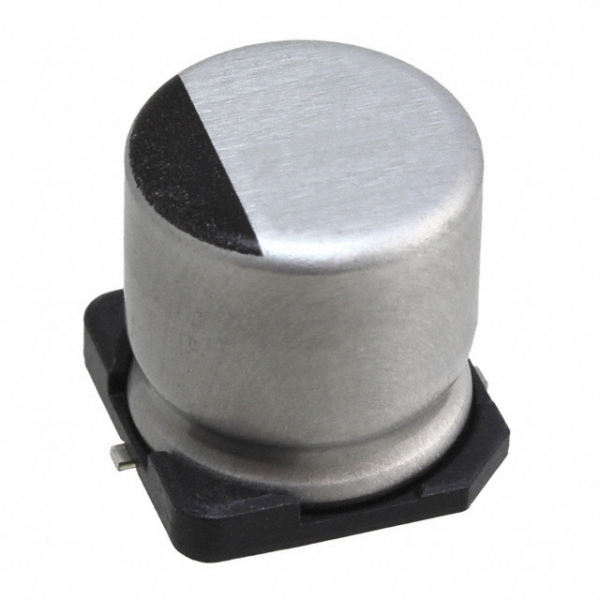

| Part Number | UWD1E331MCL1GS |
|---|---|
| Part Status | Active |
| Capacitance | 330µF |
| Tolerance | ±20% |
| Voltage - Rated | 25V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Applications | General Purpose |
| Ripple Current - Low Frequency | 335mA @ 120Hz |
| Ripple Current - High Frequency | 670mA @ 100kHz |
| Impedance | 90 mOhm |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Manufacturer: Nichicon
Description: CAP ALUM 10UF 20% 25V SMD
In Stock: 2000
Manufacturer: Nichicon
Description: CAP ALUM 100UF 20% 25V SMD
In Stock: 1800
Manufacturer: Nichicon
Description: CAP ALUM 150UF 20% 25V SMD
In Stock: 0
Manufacturer: Nichicon
Description: CAP ALUM 220UF 20% 25V SMD
In Stock: 1500
Manufacturer: Nichicon
Description: CAP ALUM 330UF 20% 25V SMD
In Stock: 0
