murata power solutions designs and manufactures dc/dc converters, ac/dc power supplies, magnetics, data acquisition devices and digital panel meters, and offers these products in custom, standard and modified-standard variations.

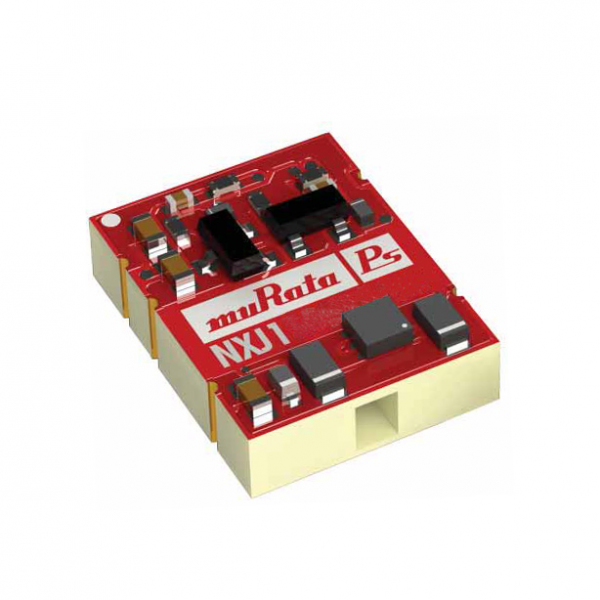

| Part Number | NXJ1S0505MC-R7 |
|---|---|
| Part Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA |
| Power (Watts) | 1W |
| Voltage - Isolation | 4.2kV (4200V) |
| Applications | ITE (Commercial), Medical |
| Features | SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 73.5% |
| Mounting Type | Surface Mount |
| Package / Case | 14-SMD Module, 5 Leads |
| Size / Dimension | 0.54" L x 0.41" W x 0.17" H (13.7mm x 10.5mm x 4.4mm) |
| Supplier Device Package | - |
| Control Features | - |
Manufacturer: Murata Power Solutions Inc.
Description: DC/DC SM 1W 3.3V-3.3V SINGLE 4.2
In Stock: 0
Manufacturer: Murata Power Solutions Inc.
Description: DC/DC SM 1W 3.3V-3.3V SINGLE 4.2
In Stock: 180
Manufacturer: Murata Power Solutions Inc.
Description: DC/DC SM 1W 3.3V-5V SINGLE 4.2KV
In Stock: 0
Manufacturer: Murata Power Solutions Inc.
Description: DC/DC SM 1W 3.3V-5V SINGLE 4.2KV
In Stock: 180
Manufacturer: Murata Power Solutions Inc.
Description: DC/DC SM 1W 5V-5V SINGLE 4.2KV
In Stock: 0
Manufacturer: Murata Power Solutions Inc.
Description: DC/DC SM 1W 5V-5V SINGLE 4.2KV
In Stock: 360
Manufacturer: Murata Power Solutions Inc.
Description: DC/DC SM 1W 12V-5V SINGLE 4.2KV
In Stock: 0
Manufacturer: Murata Power Solutions Inc.
Description: DC/DC SM 1W 12V-5V SINGLE 4.2KV
In Stock: 360
Manufacturer: Murata Power Solutions Inc.
Description: DC/DC SM 1W 12V-12V SINGLE 4.2KV
In Stock: 0
Manufacturer: Murata Power Solutions Inc.
Description: DC/DC SM 1W 12V-12V SINGLE 4.2KV
In Stock: 180
