murata power solutions designs and manufactures dc/dc converters, ac/dc power supplies, magnetics, data acquisition devices and digital panel meters, and offers these products in custom, standard and modified-standard variations.

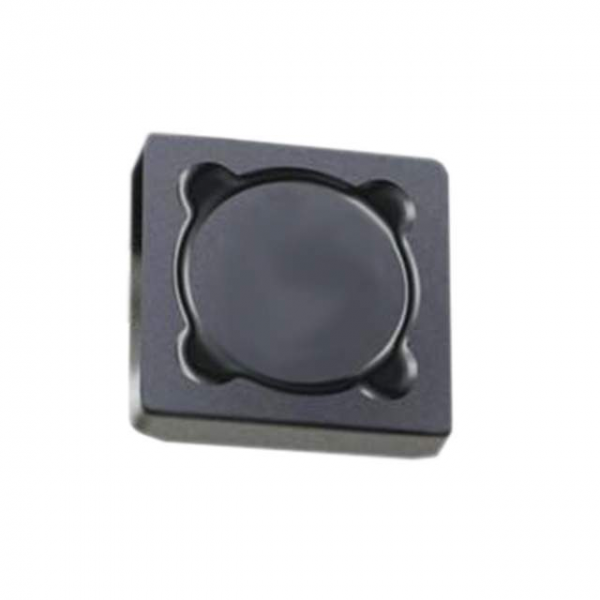

| Part Number | 34L103C |
|---|---|
| Part Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 10µH |
| Tolerance | ±20% |
| Current Rating | 660mA |
| Current - Saturation | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 325 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
