lumileds is the global light engine leader, delivering innovative, high-quality and sustainable leds and automotive lighting helping enable the inventors of next generation illumination to create truly breakthrough products.

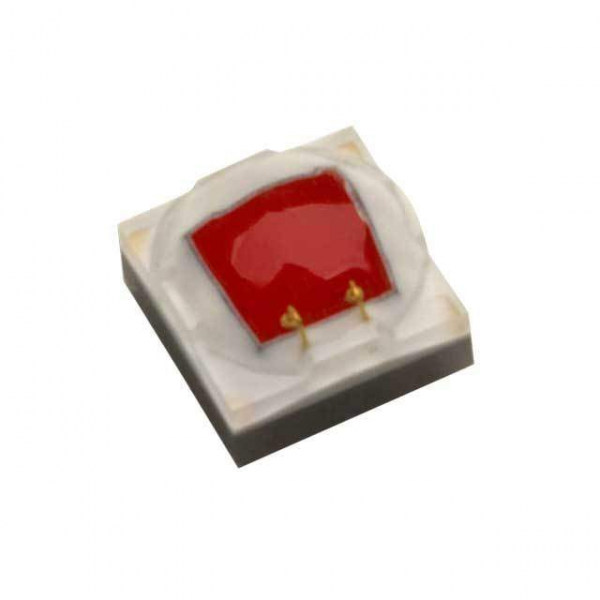

| Part Number | L1C1-RNG1000000000 |
|---|---|
| Part Status | Active |
| Color | Red-Orange |
| Wavelength | 619nm (614nm ~ 624nm) |
| Current - Test | 350mA |
| Voltage - Forward (Vf) (Typ) | 2.05V |
| Lumens/Watt @ Current - Test | 72 lm/W |
| Current - Max | 1.05A |
| Flux @ Current/Temperature - Test | 52 lm (Typ) |
| Temperature - Test | 85°C |
| Viewing Angle | 150° |
| Mounting Type | Surface Mount |
| Package / Case | 0707 (1919 Metric) |
| Supplier Device Package | SMD |
| Size / Dimension | 0.079" L x 0.079" W (2.00mm x 2.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
