hotenda.cn is an authorized distributor of eaton products. eaton is a manufacturer of passive components for circuit protection.

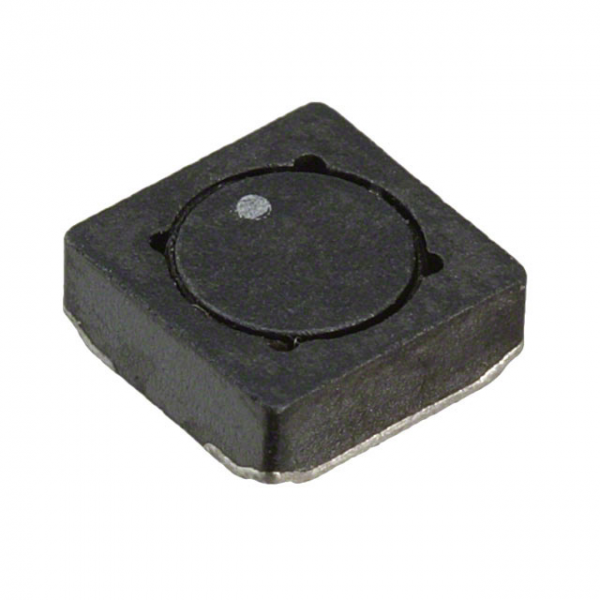

| Part Number | SD20-101-R |
|---|---|
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 100µH |
| Tolerance | ±20% |
| Current Rating | 495mA |
| Current - Saturation | 283mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.06 Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.204" L x 0.204" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
