hotenda.cn is an authorized distributor of eaton products. eaton is a manufacturer of passive components for circuit protection.

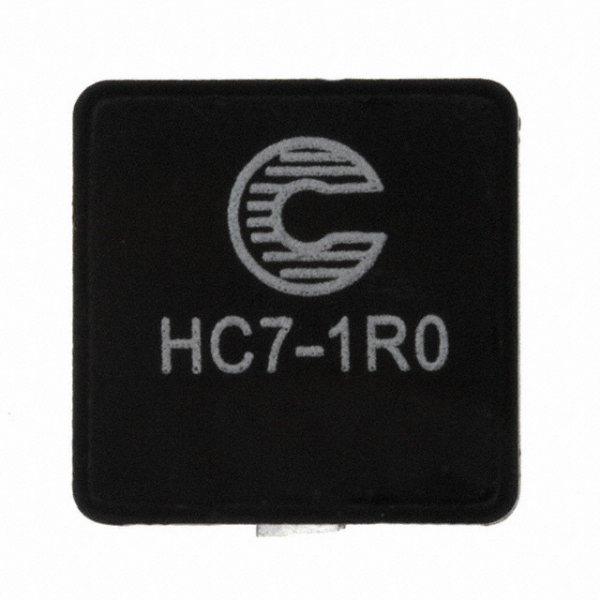

| Part Number | HC7-1R0-R |
|---|---|
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Powdered Iron |
| Inductance | 1µH |
| Tolerance | ±20% |
| Current Rating | 20.3A |
| Current - Saturation | 37.1A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.1 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 155°C |
| Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.543" L x 0.512" W (13.80mm x 13.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
