hotenda.cn is an authorized distributor of eaton products. eaton is a manufacturer of passive components for circuit protection.

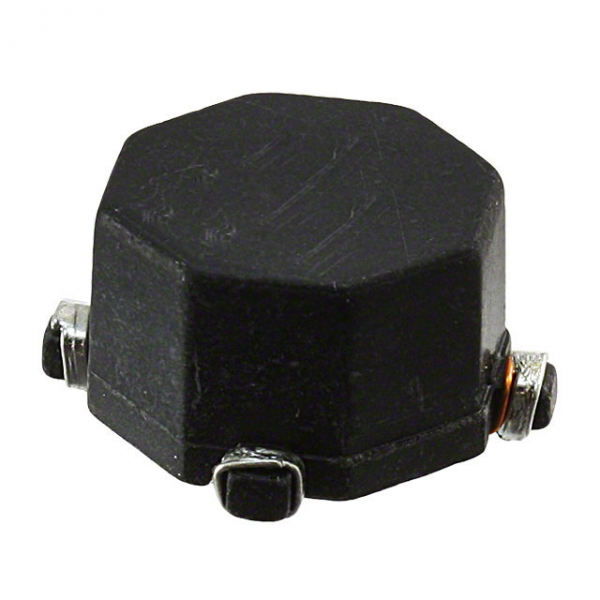

| Part Number | CTX300-2A-R |
|---|---|
| Part Status | Active |
| Number of Coils | 2 |
| Test Inductance - Connected In Series | 1.215mH |
| Inductance - Connected In Parallel | 303.7µH |
| Tolerance | ±25% |
| Current Rating - Parallel | 580mA |
| Current Rating - Series | 290mA |
| Current Saturation - Parallel | 600mA |
| Current Saturation - Series | 300mA |
| DC Resistance (DCR) - Parallel | 1.174 Ohm Max |
| DC Resistance (DCR) - Series | 4.697 Ohm Max |
| Shielding | Unshielded |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) |
| Height | 0.235" (5.97mm) |
Manufacturer: Eaton
Description: INDUCT ARRAY 2 COIL 299.87UH SMD
In Stock: 0
Manufacturer: Eaton
Description: INDUCT ARRAY 2 COIL 300.42UH SMD
In Stock: 0
Manufacturer: Eaton
Description: INDUCT ARRAY 2 COIL 298.39UH SMD
In Stock: 0
