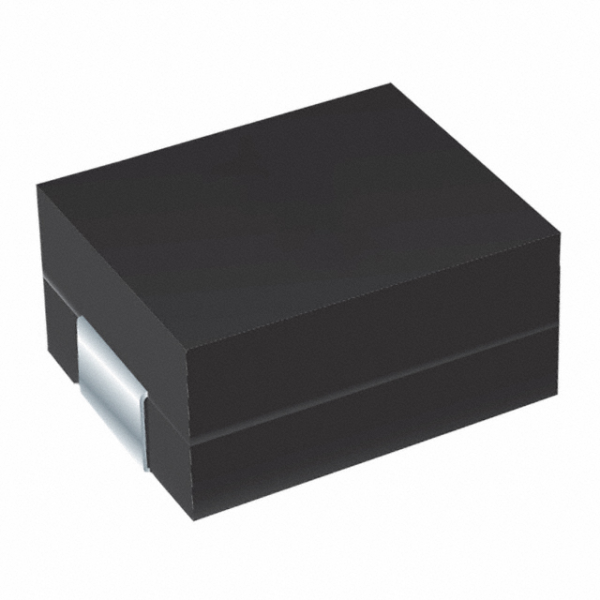

| Part Number | SRP8040-R22Y |
|---|---|
| Part Status | Last Time Buy |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 220nH |
| Tolerance | ±30% |
| Current Rating | 25A |
| Current - Saturation | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 650 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 150°C |
| Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.323" L x 0.240" W (8.20mm x 6.10mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
