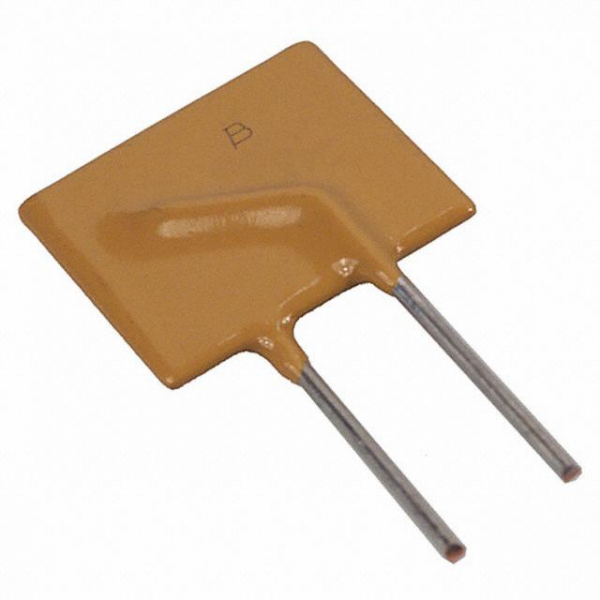

| Part Number | MF-R900-0-003 |
|---|---|
| Part Status | Active |
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Max | 40A |
| Current - Hold (Ih) (Max) | 9A |
| Current - Trip (It) | 18A |
| Time to Trip | 20s |
| Resistance - Initial (Ri) (Min) | 5 mOhm |
| Resistance - Post Trip (R1) (Max) | 20 mOhm |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.953" L x 0.118" W (24.20mm x 3.00mm) |
| Height - Seated (Max) | 1.295" (32.90mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.402" (10.20mm) |
