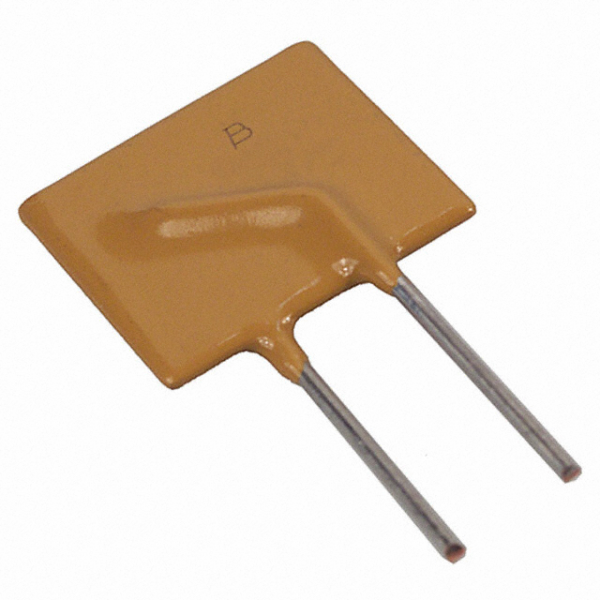

| Part Number | MF-R400-AP-99 |
|---|---|
| Part Status | Active |
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Max | 40A |
| Current - Hold (Ih) (Max) | 4A |
| Current - Trip (It) | 8A |
| Time to Trip | 12.7s |
| Resistance - Initial (Ri) (Min) | 10 mOhm |
| Resistance - Post Trip (R1) (Max) | 50 mOhm |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.567" L x 0.118" W (14.40mm x 3.00mm) |
| Height - Seated (Max) | 0.976" (24.80mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.201" (5.10mm) |
