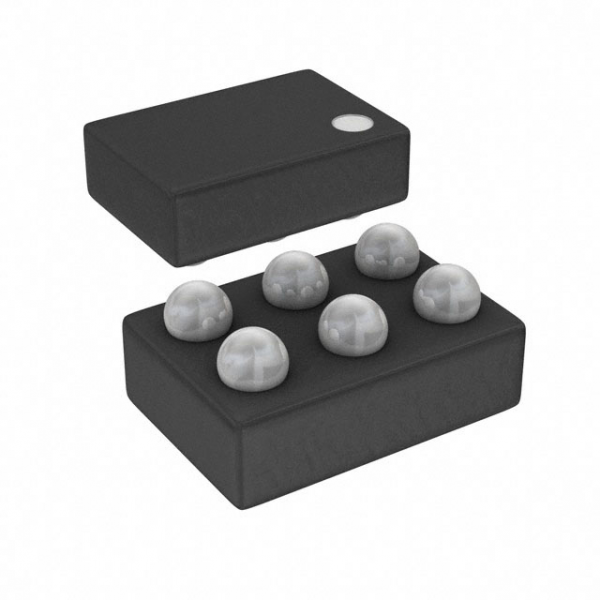

Analog Devices Inc. ADP1196ACBZ-02-R7

Part Number
ADP1196ACBZ-02-R7
Manufacturer
Analog Devices Inc.
Description
IC LOW-SIDE LOAD SWITCH 6WLCSP
Lead Free Status / RoHS Status
Lead free / RoHS Compliant
Family
PMIC - Power Distribution Switches, Load Drivers
Analog Devices Inc

Analog Devices Inc

hotenda.cn is an authorized distributor of analog devices products. adi specializes in high-performance analog, mixed-signal & dsp ics.

In Stock 7500 pcs

  • Reference Price

    (In US Dollars)

  • 1 pcs

    0.20250/pcs

  • 3,000 pcs

    0.20452/pcs

  • 6,000 pcs

    0.19695/pcs
Total:0.20250/pcsUnit Price:
0.20250/pcs		Target price:
Quantity:
Product Parameter
Part NumberADP1196ACBZ-02-R7
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side or Low Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load1.83 V ~ 5.5 V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)3A
Rds On (Typ)10 mOhm
Input TypeNon-Inverting
FeaturesSlew Rate Controlled
Fault ProtectionCurrent Limiting (Fixed), Over Temperature
Operating Temperature-40°C ~ 105°C (TJ)
Package / Case6-WFBGA, WLCSP
Supplier Device Package6-WLCSP (1.45x0.95)
