vishay intertechnology is one of the world's largest manufacturers of discrete semiconductors and selected ics, and passive electronic components.

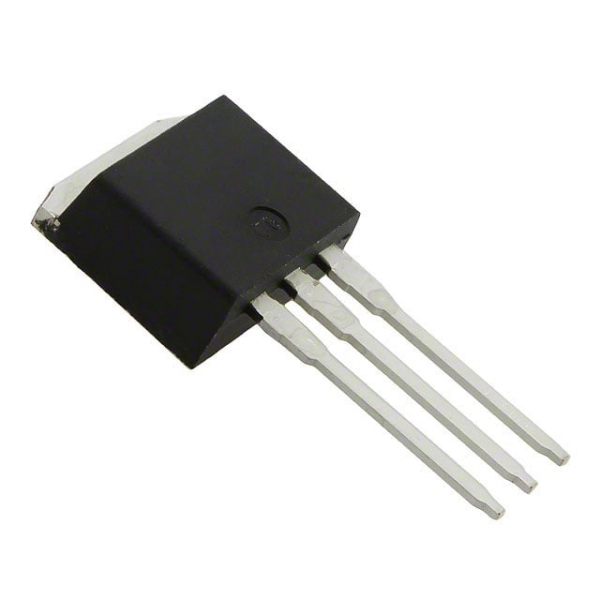

| Part Number | IRL520LPBF |
|---|---|
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 9.2A (Tc) |
| Drive Voltage (Max Rds On,Min Rds On) | 4V, 5V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12nC @ 5V |
| Input Capacitance (Ciss) (Max) @ Vds | 490pF @ 25V |
| Vgs (Max) | ±10V |
| FET Feature | - |
| Power Dissipation (Max) | 60W (Tc) |
| Rds On (Max) @ Id, Vgs | 270 mOhm @ 5.5A, 5V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-262-3 |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
Manufacturer: Vishay Siliconix
Description: MOSFET N-CH 100V 5.6A D2PAK
In Stock: 0
Manufacturer: Vishay Siliconix
Description: MOSFET N-CH 100V 5.6A D2PAK
In Stock: 0
