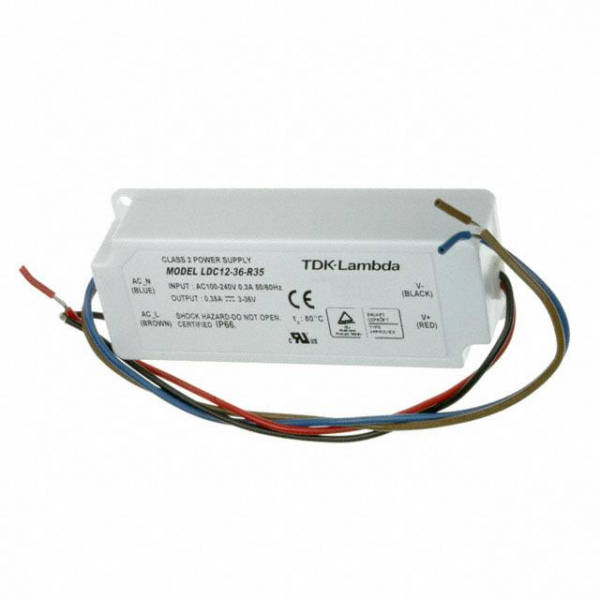

TDK-Lambda Americas Inc. LDC12-36-R35

Part Number: LDC12-36-R35
Manufacturer: TDK-Lambda Americas Inc.
Description: LED DRIVER CC AC/DC 3-36V 350MA
Lead Free Status / RoHS Status: Lead free / RoHS Compliant
Family: LED Drivers

TDK-Lambda Americas, Inc.

lambda americas, inc. was founded in 1948 and headquartered in san diego, ca, the company is a leader in the design and manufacture of a wide range of ac-dc power supplies and dc-dc converters for industrial, cots, medical, telecom, datacom, and test & measurement applications worldwide.

Product Parameter

Part Number	LDC12-36-R35
Part Status	Obsolete
Type	Constant Current
Topology	AC DC Converter
Number of Outputs	1
Voltage - Input (Min)	90VAC
Voltage - Input (Max)	264VAC
Voltage - Output	3 ~ 36 V
Current - Output (Max)	350mA
Power (Watts)	13W
Voltage - Isolation	3kV (3000V)
Dimming	-
Features	OCP, OVP
Ratings	IP66
Operating Temperature	-10°C ~ 60°C
Efficiency	82%
Termination Style	Wire Leads
Size / Dimension	3.45" L x 1.36" W x 0.83" H (90.0mm x 34.5mm x 21.0mm)
