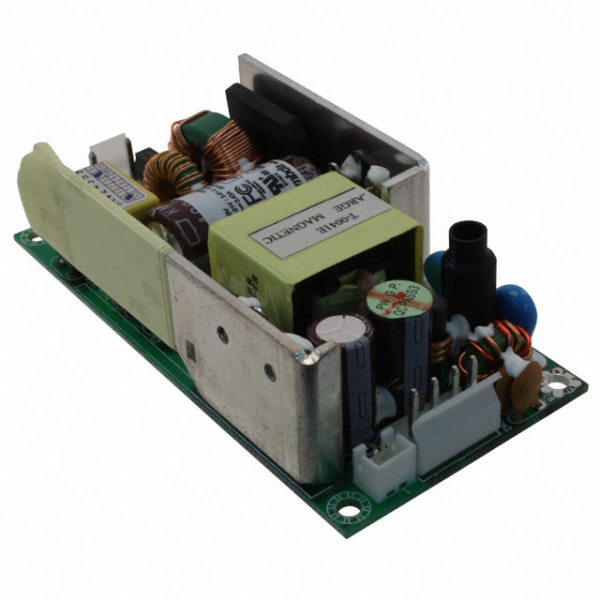

TDK-Lambda Americas Inc. CSS655

Part Number: CSS655
Manufacturer: TDK-Lambda Americas Inc.
Description: AC/DC CONVERTER 5V 65W
Lead Free Status / RoHS Status: Lead free / RoHS Compliant
Family: AC DC Converters

TDK-Lambda Americas, Inc.

lambda americas, inc. was founded in 1948 and headquartered in san diego, ca, the company is a leader in the design and manufacture of a wide range of ac-dc power supplies and dc-dc converters for industrial, cots, medical, telecom, datacom, and test & measurement applications worldwide.

Product Parameter

Part Number	CSS655
Part Status	Last Time Buy
Type	Open Frame
Number of Outputs	1
Voltage - Input	90 ~ 264 VAC
Voltage - Output 1	5V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	8A
Power (Watts)	65W
Applications	Medical
Voltage - Isolation	4kV (4000V)
Efficiency	86%
Operating Temperature	0°C ~ 70°C
Features	DC Input Capable, Remote Sense, Universal Input
Mounting Type	Chassis Mount
Size / Dimension	4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm)
