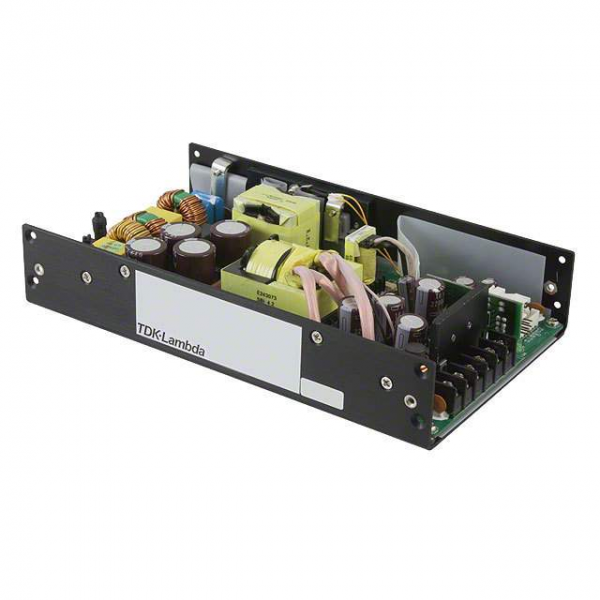

TDK-Lambda Americas Inc. CSS50024

Part Number: CSS50024
Manufacturer: TDK-Lambda Americas Inc.
Description: AC/DC CONVERTER 24V 360W
Lead Free Status / RoHS Status: Lead free / RoHS Compliant
Family: AC DC Converters

TDK-Lambda Americas, Inc.

lambda americas, inc. was founded in 1948 and headquartered in san diego, ca, the company is a leader in the design and manufacture of a wide range of ac-dc power supplies and dc-dc converters for industrial, cots, medical, telecom, datacom, and test & measurement applications worldwide.

Product Parameter

Part Number	CSS50024
Part Status	Active
Type	Open Frame
Number of Outputs	1
Voltage - Input	90 ~ 264 VAC
Voltage - Output 1	24V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	15A
Power (Watts)	360W (500W Forced Air)
Applications	Medical
Voltage - Isolation	4kV (4000V)
Efficiency	87%
Operating Temperature	0°C ~ 70°C (With Derating)
Features	Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input
Mounting Type	Chassis Mount
Size / Dimension	9.00" L x 4.70" W x 1.63" H (228.6mm x 119.4mm x 41.4mm)
