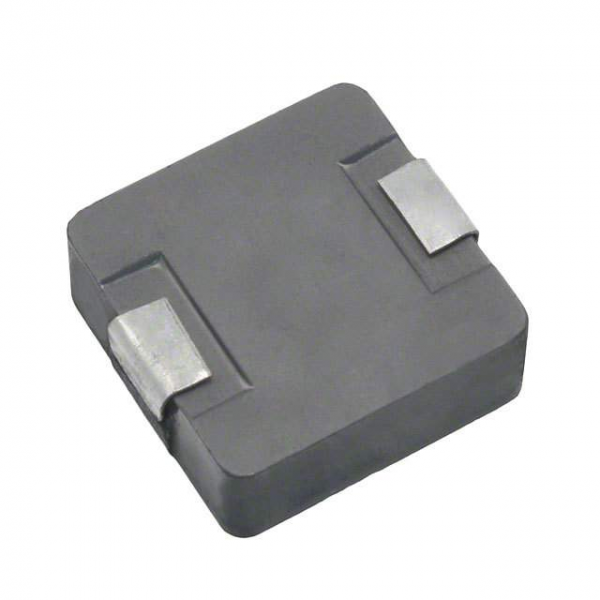

| Part Number | PCMC135T-R47MF |
|---|---|
| Part Status | Obsolete |
| Type | - |
| Material - Core | - |
| Inductance | 470nH |
| Tolerance | ±20% |
| Current Rating | 38A |
| Current - Saturation | 65A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.3 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.530" L x 0.496" W (13.45mm x 12.60mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
