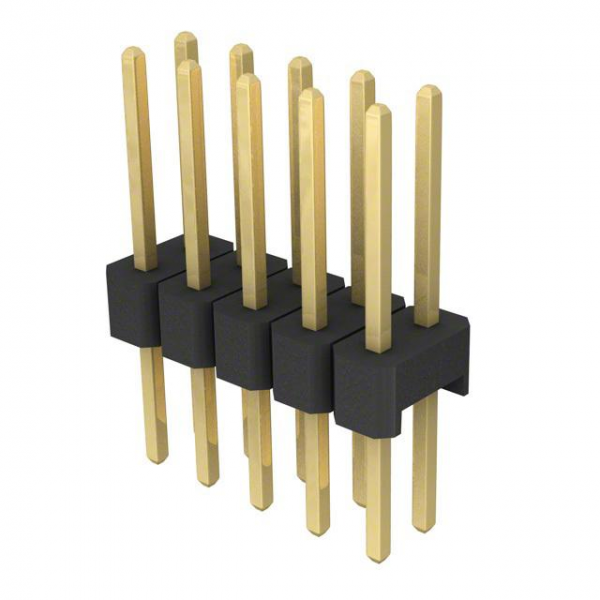

Sullins Connector Solutions PRPC005DFBN-RC

Part Number: PRPC005DFBN-RC
Manufacturer: Sullins Connector Solutions
Description: CONN HEADER .100" DUAL STR 10POS
Lead Free Status / RoHS Status: Lead free / RoHS Compliant
Family: Rectangular Connectors - Headers, Male Pins

Sullins Connector Solutions

hotenda.cn is an authorized distributor of sullins connector products. sullins designs, engineerings, and manufactures high-quality edge cards and headers.

Product Parameter

Part Number	PRPC005DFBN-RC
Part Status	Active
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Style	Board to Board or Cable
Shrouding	Unshrouded
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.318" (8.08mm)
Contact Length - Post	0.220" (5.58mm)
Overall Contact Length	0.637" (16.17mm)
Insulation Height	0.098" (2.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT)
Features	-
Operating Temperature	-40°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
