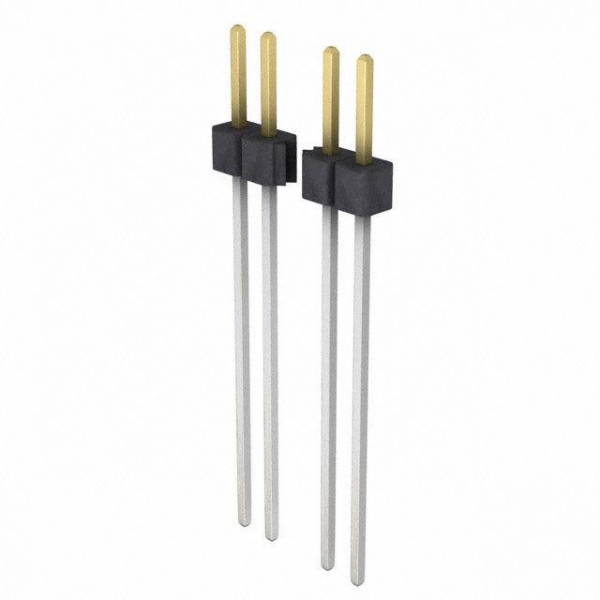

Sullins Connector Solutions PBC06SAFN

Part Number: PBC06SAFN
Manufacturer: Sullins Connector Solutions
Description: CONN HEADER .100 SINGL STR 6POS
Lead Free Status / RoHS Status: Lead free / RoHS Compliant
Family: Rectangular Connectors - Headers, Male Pins

Sullins Connector Solutions

hotenda.cn is an authorized distributor of sullins connector products. sullins designs, engineerings, and manufactures high-quality edge cards and headers.

Product Parameter

Part Number	PBC06SAFN
Part Status	Active
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Style	Board to Board or Cable
Shrouding	Unshrouded
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Row Spacing - Mating	-
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.620" (15.75mm)
Overall Contact Length	0.950" (24.13mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Features	-
Operating Temperature	-65°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
