silicon labs (nasdaq: slab) is a leading provider of silicon, software and system solutions for the internet of things, internet infrastructure, industrial control, consumer and automotive markets.

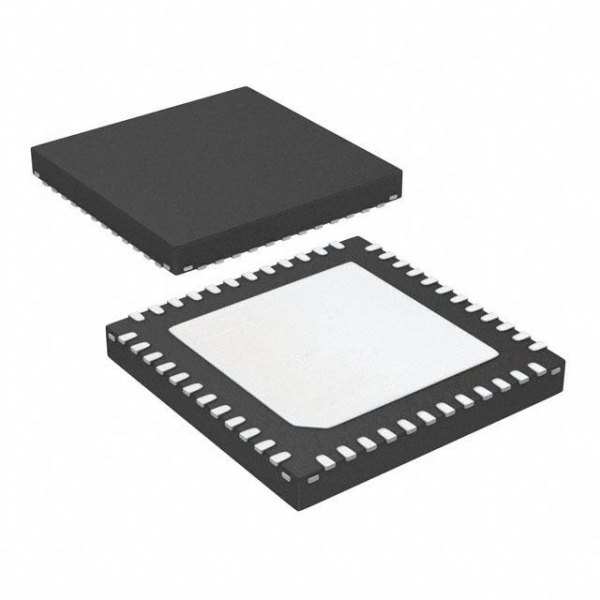

| Part Number | EM250-RTR |
|---|---|
| Part Status | Active |
| Type | TxRx + MCU |
| RF Family/Standard | 802.15.4 |
| Protocol | Zigbee® |
| Modulation | - |
| Frequency | 2.4GHz |
| Data Rate (Max) | 12Mbps |
| Power - Output | 5dBm |
| Sensitivity | -99dBm |
| Memory Size | 128kB Flash, 5kB SRAM |
| Serial Interfaces | I²C, SPI, UART |
| GPIO | 17 |
| Voltage - Supply | 2.1 V ~ 3.6 V |
| Current - Receiving | 36mA |
| Current - Transmitting | 36mA |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 48-VFQFN Exposed Pad |
