power integrations is the leading supplier of high-voltage analog integrated circuits for energy-efficient power conversion.

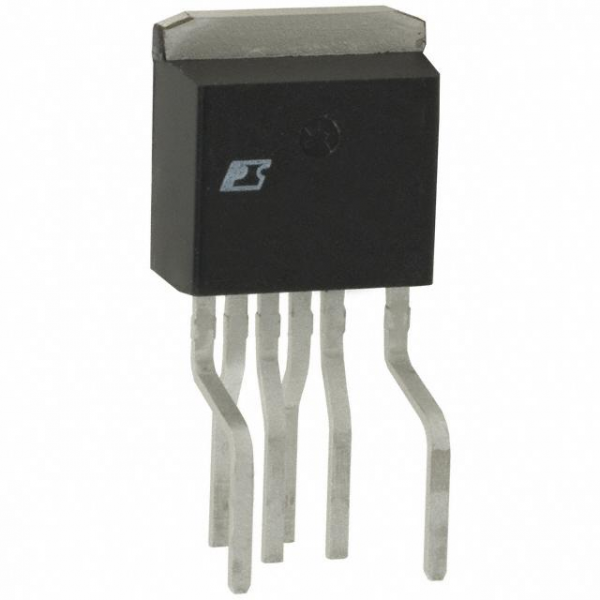

| Part Number | TOP249FN |
|---|---|
| Part Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 66.8% |
| Frequency - Switching | 66kHz ~ 132kHz |
| Power (Watts) | 250W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | TO-262-7 (Formed Leads), 6 Leads |
| Supplier Device Package | TO-262-7C |
| Mounting Type | Through Hole |
