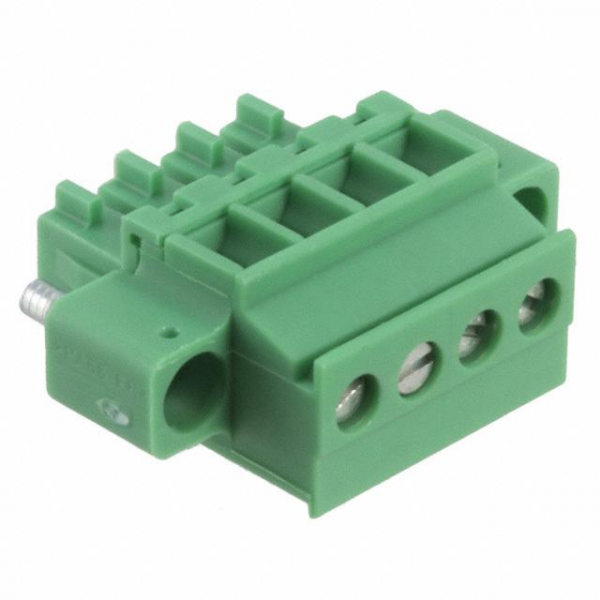

Phoenix Contact 1828362

Part Number: 1828362
Manufacturer: Phoenix Contact
Description: TERM BLOCK PLUG 4POS 3.81MM
Lead Free Status / RoHS Status: Lead free / RoHS Compliant
Family: Terminal Blocks - Headers, Plugs and Sockets

Phoenix Contact

phoenix contact terminal blocks, industrial controls, power relays and more available at digi-key. digi-key is an authorized phoenix contact distributor.

Product Parameter

Part Number	1828362
Part Status	Active
Type	Plug, Female Sockets
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.150" (3.81mm)
Header Orientation	-
Plug Wire Entry	90°
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Mounting Type	Free Hanging (In-Line)
Current - IEC	8A
Voltage - IEC	320V
Current - UL	8A
Voltage - UL	300V
Wire Gauge or Range - AWG	14-30 AWG
Wire Gauge or Range - mm²	0.14-1.5mm²
Color	Green
Operating Temperature	-
Contact Mating Finish	Tin
Features	Mating Flange
