nichicon focuses on the development, manufacture and sale of the capacitors and other electronic components essential to a broad range of electronic devices.

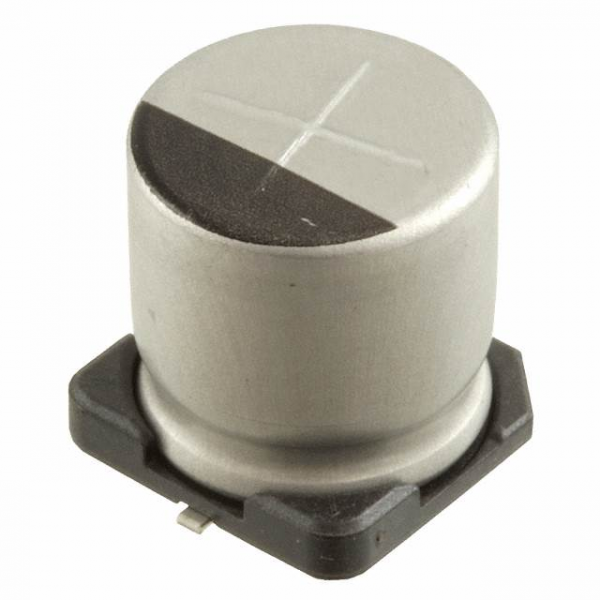

| Part Number | UCD1A331MCL6GS |
|---|---|
| Part Status | Active |
| Capacitance | 330µF |
| Tolerance | ±20% |
| Voltage - Rated | 10V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Applications | General Purpose |
| Ripple Current - Low Frequency | 300mA @ 120Hz |
| Ripple Current - High Frequency | 600mA @ 100kHz |
| Impedance | 180 mOhm |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.323" (8.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Manufacturer: Nichicon
Description: CAP ALUM 100UF 20% 10V SMD
In Stock: 2277
Manufacturer: Nichicon
Description: CAP ALUM 1000UF 20% 10V SMD
In Stock: 4000
Manufacturer: Nichicon
Description: CAP ALUM 150UF 20% 10V SMD
In Stock: 0
Manufacturer: Nichicon
Description: CAP ALUM 1500UF 20% 10V SMD
In Stock: 0
Manufacturer: Nichicon
Description: CAP ALUM 220UF 20% 10V SMD
In Stock: 3600
Manufacturer: Nichicon
Description: CAP ALUM 220UF 20% 10V SMD
In Stock: 0
Manufacturer: Nichicon
Description: CAP ALUM 2200UF 20% 10V SMD
In Stock: 0
