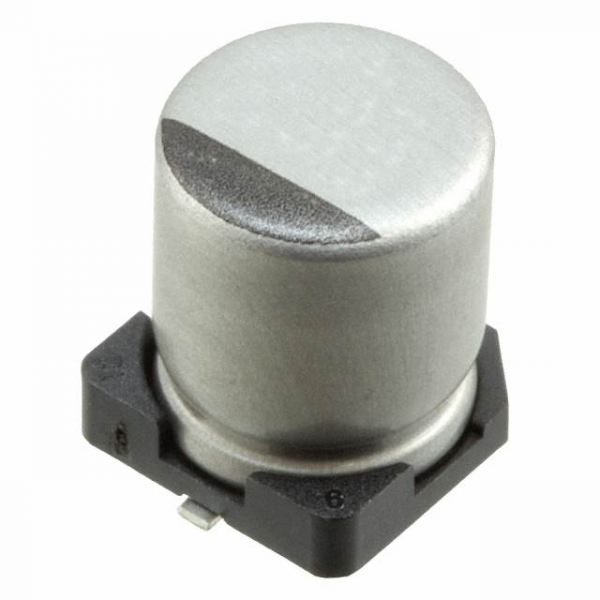

Nichicon UCD0J331MCL1GS

Part Number: UCD0J331MCL1GS
Manufacturer: Nichicon
Description: CAP ALUM 330UF 20% 6.3V SMD
Lead Free Status / RoHS Status: Lead free / RoHS Compliant
Family: Aluminum Capacitors

Nichicon

nichicon focuses on the development, manufacture and sale of the capacitors and other electronic components essential to a broad range of electronic devices.

In Stock 190242 pcs

Reference Price
(In US Dollars)
1 pcs
0.06757/pcs
900 pcs
0.06757/pcs
1,800 pcs
0.06381/pcs
2,700 pcs
0.06006/pcs
4,500 pcs
0.05631/pcs
9,000 pcs
0.05255/pcs
22,500 pcs
0.05162/pcs
45,000 pcs
0.05067/pcs
90,000 pcs
0.04880/pcs

Total:0.06757/pcs

Unit Price:

0.06757/pcs

Target price:

Quantity:

Product Parameter

Part Number	UCD0J331MCL1GS
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current - Low Frequency	145mA @ 120Hz
Ripple Current - High Frequency	290mA @ 100kHz
Impedance	320 mOhm
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
