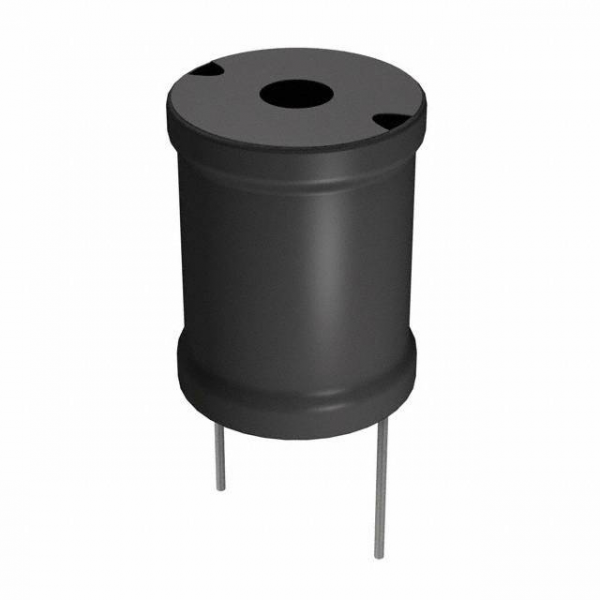

Murata Power Solutions Inc. 15103C

Part Number: 15103C
Manufacturer: Murata Power Solutions Inc.
Description: FIXED IND 10UH 9.01A 10.6 MOHM
Lead Free Status / RoHS Status: Lead free / RoHS Compliant
Family: Fixed Inductors

Murata Power Solutions Inc

murata power solutions designs and manufactures dc/dc converters, ac/dc power supplies, magnetics, data acquisition devices and digital panel meters, and offers these products in custom, standard and modified-standard variations.

Product Parameter

Part Number	15103C
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	10µH
Tolerance	±10%
Current Rating	9.01A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	10.6 mOhm Max
Q @ Freq	112 @ 1MHz
Frequency - Self Resonant	30MHz
Ratings	-
Operating Temperature	-40°C ~ 85°C
Frequency - Test	10kHz
Features	-
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.661" Dia (16.80mm)
Height - Seated (Max)	0.839" (21.30mm)
