littelfuse fuses available at hotenda.cn. littelfuse offers powr-gard®, teccor®, wickmann®, pudenz®, hamlin®, and sidactor® brand circuit protection products.

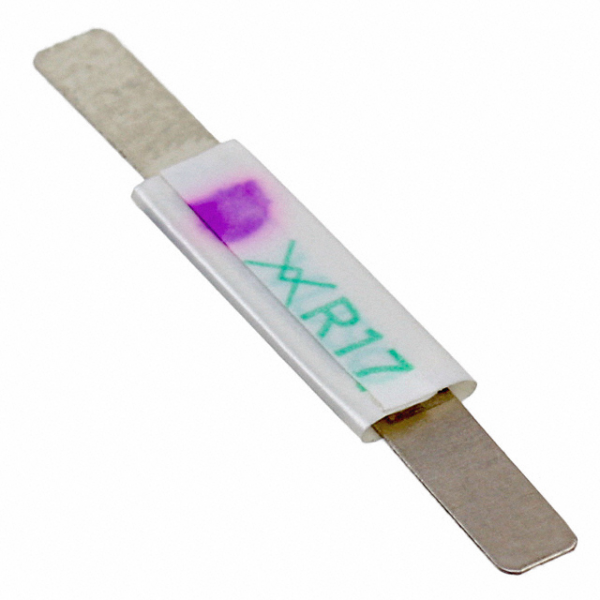

| Part Number | VLR170F |
|---|---|
| Part Status | Active |
| Type | Polymeric |
| Voltage - Max | 12V |
| Current - Max | 100A |
| Current - Hold (Ih) (Max) | 1.7A |
| Current - Trip (It) | 4.1A |
| Time to Trip | 5s |
| Resistance - Initial (Ri) (Min) | 18 mOhm |
| Resistance - Post Trip (R1) (Max) | 64 mOhm |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 70°C |
| Ratings | - |
| Mounting Type | User Defined |
| Package / Case | Strap |
| Size / Dimension | 0.866" L x 0.146" W (22.00mm x 3.70mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.032" (0.80mm) |
| Lead Spacing | - |
