ixys integrated circuits division, formerly clare, an ixys company, designs, manufactures, and markets high-voltage integrated circuits.
| Part Number | IXDI604PI |
|---|---|
| Part Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5 V ~ 35 V |
| Logic Voltage - VIL, VIH | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 9ns, 8ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |

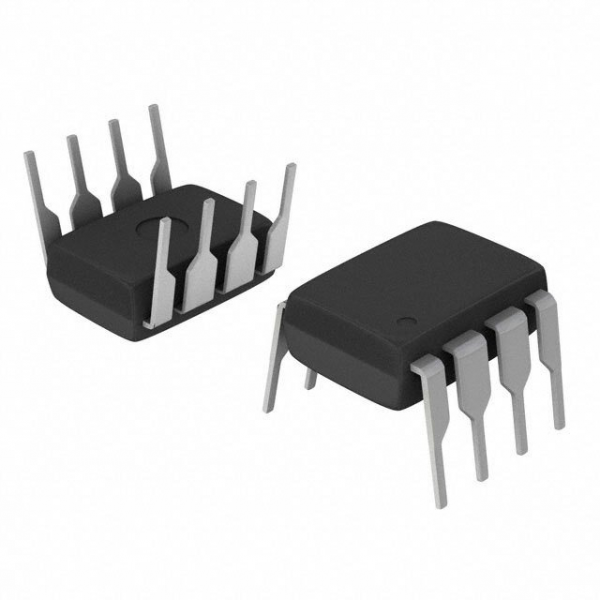

| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
