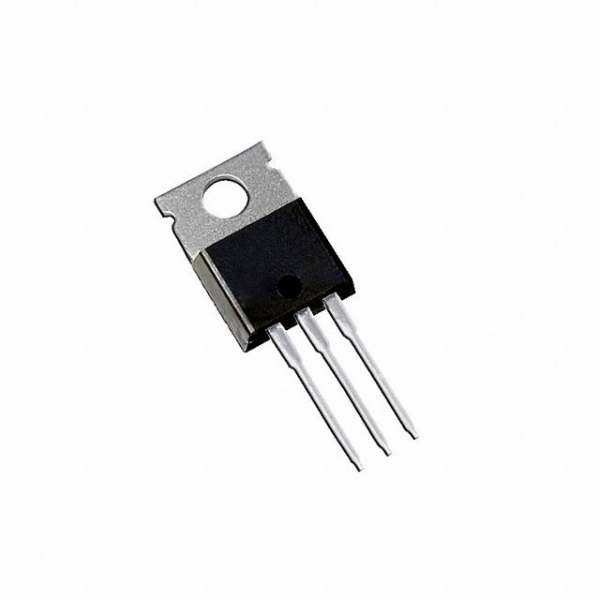

| Part Number | IRL3803VPBF |
|---|---|
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 140A (Tc) |
| Drive Voltage (Max Rds On,Min Rds On) | 4.5V, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 76nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 3720pF @ 25V |
| Vgs (Max) | ±16V |
| FET Feature | - |
| Power Dissipation (Max) | 200W (Tc) |
| Rds On (Max) @ Id, Vgs | 5.5 mOhm @ 71A, 10V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
