hirose connectors, cables, tools and more available at hotenda.cn. hotenda.cn is an authorized distributor of hirose products.

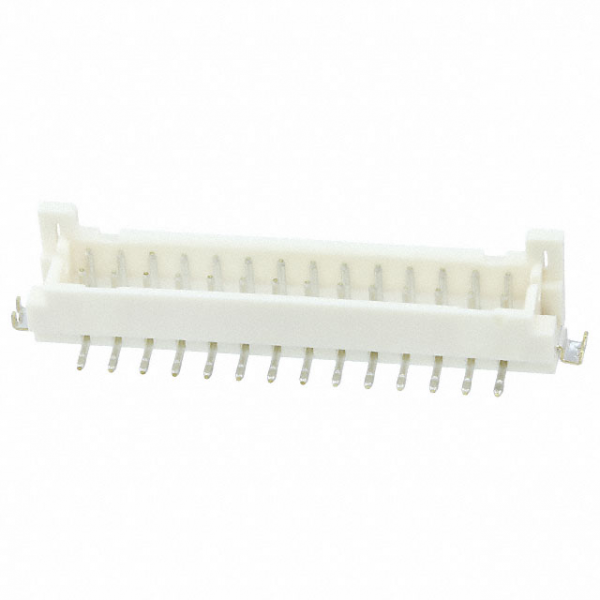

| Part Number | DF11Z-28DP-2V(27) |
|---|---|
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Number of Positions | 28 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.284" (7.20mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39µin (1.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Board Guide, Pick and Place, Solder Retention |
| Operating Temperature | -30°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Beige |
Manufacturer: Hirose Electric Co Ltd
Description: CONN HDR 10POS
In Stock: 0
Manufacturer: Hirose Electric Co Ltd
Description: CONN HDR 10POS
In Stock: 0
Manufacturer: Hirose Electric Co Ltd
Description: CONN RECEPT 10POS 2MM SMD TIN
In Stock: 0
Manufacturer: Hirose Electric Co Ltd
Description: CONN RECEPT 10POS 2MM SMD TIN
In Stock: 0
Manufacturer: Hirose Electric Co Ltd
Description: CONN RECEPT 10POS 2MM SMD GOLD
In Stock: 81
Manufacturer: Hirose Electric Co Ltd
Description: CONN HDR 12POS
In Stock: 0
Manufacturer: Hirose Electric Co Ltd
Description: CONN HDR 12POS
In Stock: 0
Manufacturer: Hirose Electric Co Ltd
Description: CONN RECEPT 12POS 2MM SMD TIN
In Stock: 1188
Manufacturer: Hirose Electric Co Ltd
Description: CONN RECEPT 12POS 2MM SMD GOLD
In Stock: 173
Manufacturer: Hirose Electric Co Ltd
Description: CONN RECEPT 12POS 2MM SMD GOLD
In Stock: 0
