hotenda.cn is an authorized distributor of eaton products. eaton is a manufacturer of passive components for circuit protection.

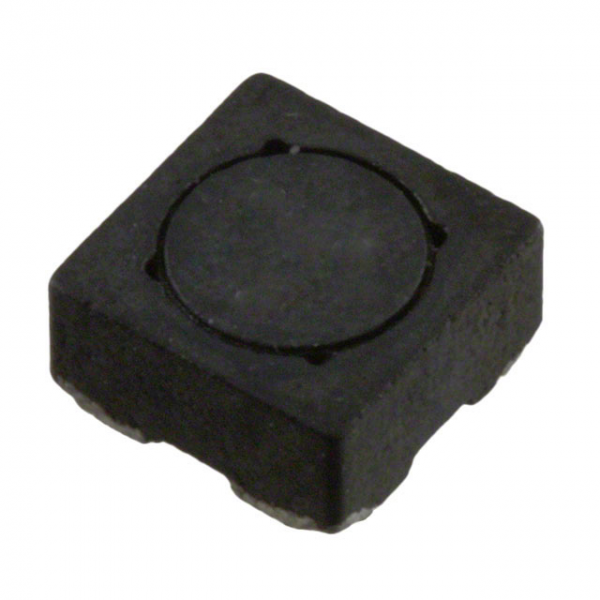

| Part Number | SDQ25-821-R |
|---|---|
| Part Status | Active |
| Number of Coils | 2 |
| Test Inductance - Connected In Series | 3.3mH |
| Inductance - Connected In Parallel | 824.3µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 186mA |
| Current Rating - Series | 93mA |
| Current Saturation - Parallel | 140mA |
| Current Saturation - Series | 70mA |
| DC Resistance (DCR) - Parallel | 7.25 Ohm |
| DC Resistance (DCR) - Series | 28.99 Ohm |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height | 0.098" (2.50mm) |
