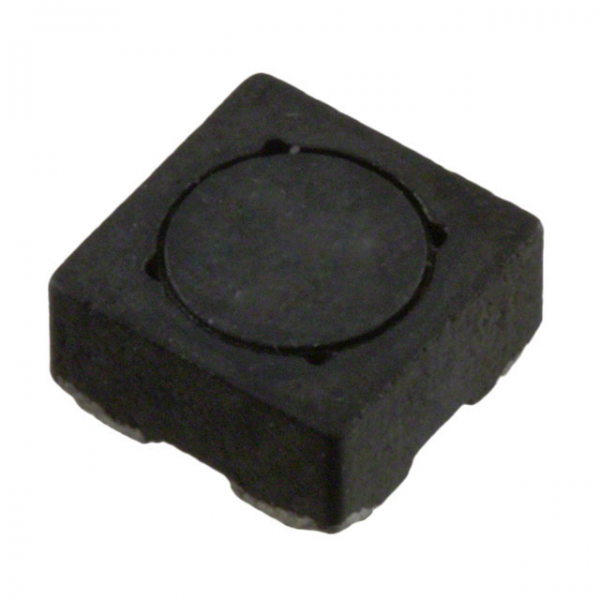

| Part Number | SDQ25-6R8-R |
|---|---|
| Part Status | Active |
| Number of Coils | 2 |
| Test Inductance - Connected In Series | 26.91µH |
| Inductance - Connected In Parallel | 6.73µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 1.84A |
| Current Rating - Series | 918mA |
| Current Saturation - Parallel | 1.55A |
| Current Saturation - Series | 776mA |
| DC Resistance (DCR) - Parallel | 74.1 mOhm |
| DC Resistance (DCR) - Series | 296.4 mOhm |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height | 0.098" (2.50mm) |
