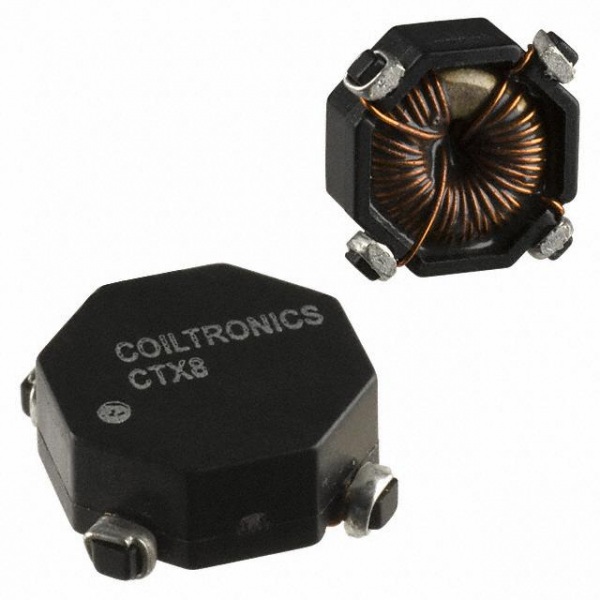

| Part Number | CTX8-4-R |
|---|---|
| Part Status | Active |
| Number of Coils | 2 |
| Test Inductance - Connected In Series | 33.12µH |
| Inductance - Connected In Parallel | 8.28µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 3.5A |
| Current Rating - Series | 1.75A |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 18 mOhm Max |
| DC Resistance (DCR) - Series | 72 mOhm Max |
| Shielding | Unshielded |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) |
| Height | 0.250" (6.35mm) |
