hotenda.cn is an authorized distributor of eaton products. eaton is a manufacturer of passive components for circuit protection.

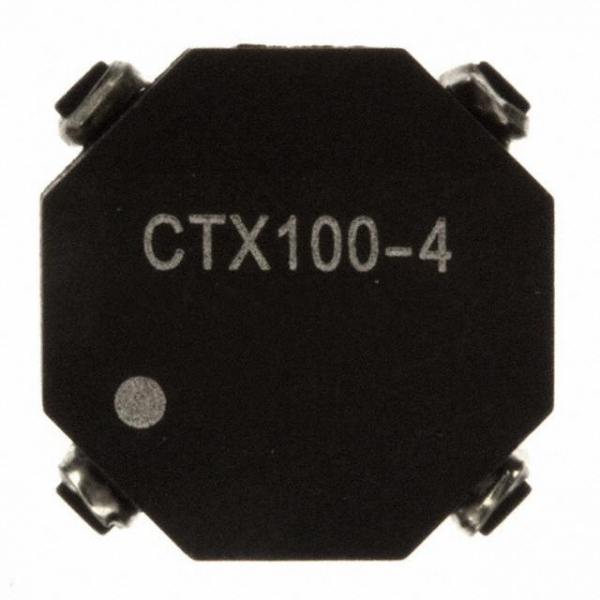

| Part Number | CTX100-4-R |
|---|---|
| Part Status | Active |
| Number of Coils | 2 |
| Test Inductance - Connected In Series | 396.9µH |
| Inductance - Connected In Parallel | 99.23µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 920mA |
| Current Rating - Series | 460mA |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 302 mOhm Max |
| DC Resistance (DCR) - Series | 1.21 Ohm Max |
| Shielding | Unshielded |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) |
| Height | 0.250" (6.35mm) |
