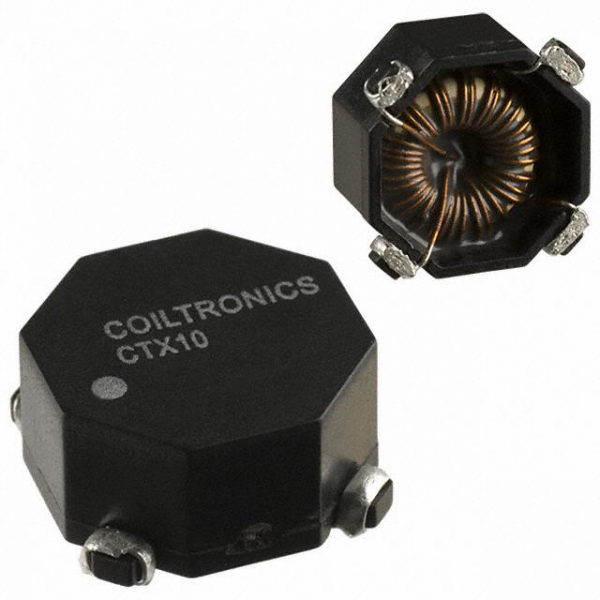

| Part Number | CTX10-4A-R |
|---|---|
| Part Status | Active |
| Number of Coils | 2 |
| Test Inductance - Connected In Series | 42.11µH |
| Inductance - Connected In Parallel | 10.53µH |
| Tolerance | ±25% |
| Current Rating - Parallel | 4.67A |
| Current Rating - Series | 2.33A |
| Current Saturation - Parallel | 4.09A |
| Current Saturation - Series | 2.05A |
| DC Resistance (DCR) - Parallel | 20 mOhm Max |
| DC Resistance (DCR) - Series | 81 mOhm Max |
| Shielding | Unshielded |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) |
| Height | 0.250" (6.35mm) |
