the delta group designs and builds innovative cooling systems that perform at the highest levels – even in the harshest environments.

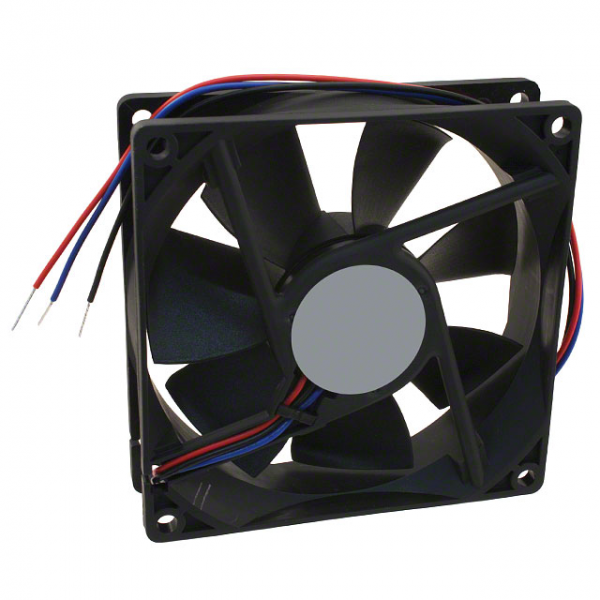

| Part Number | AFB0924H-R00 |
|---|---|
| Part Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 92mm L x 92mm H |
| Width | 25.40mm |
| Air Flow | 51.2 CFM (1.45m³/min) |
| Static Pressure | 0.177 in H2O (44.1 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Noise | 34 dB(A) |
| Power (Watts) | 2.40W |
| RPM | 2850 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approvals | CE, CSA, UL, VDE |
| Weight | 0.218 lb (98.88g) |
Manufacturer: Delta Electronics
