the delta group designs and builds innovative cooling systems that perform at the highest levels – even in the harshest environments.

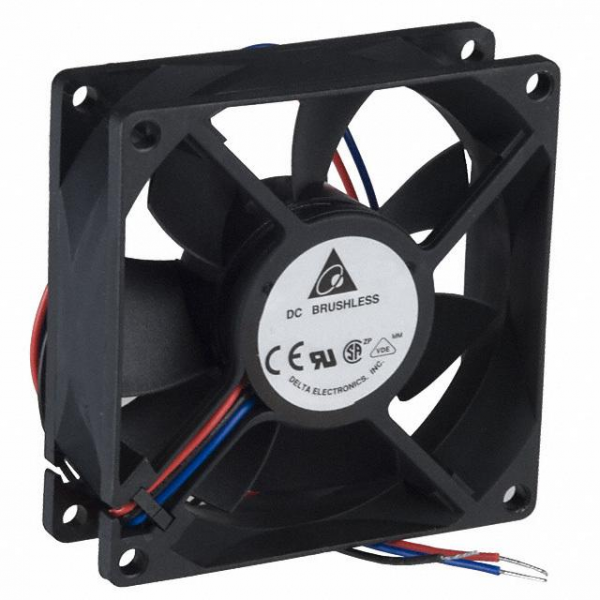

| Part Number | AFB0812SH-R00 |
|---|---|
| Part Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 80mm L x 80mm H |
| Width | 25.40mm |
| Air Flow | 46.6 CFM (1.32m³/min) |
| Static Pressure | 0.267 in H2O (66.5 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Noise | 40 dB(A) |
| Power (Watts) | 4.08W |
| RPM | 4000 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approvals | CE, CSA, UL, VDE |
| Weight | 0.176 lb (79.83g) |
