the delta group designs and builds innovative cooling systems that perform at the highest levels – even in the harshest environments.

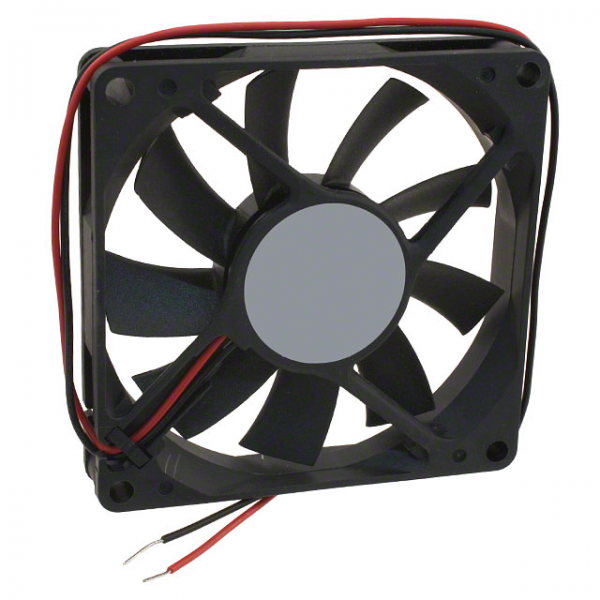

| Part Number | AFB0812LB-R00 |
|---|---|
| Part Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 80mm L x 80mm H |
| Width | 15.00mm |
| Air Flow | 24.7 CFM (0.699m³/min) |
| Static Pressure | 0.087 in H2O (21.7 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Noise | 27.5 dB(A) |
| Power (Watts) | 1.08W |
| RPM | 2400 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approvals | CE, CSA, UL, VDE |
| Weight | 0.128 lb (58.06g) |
Manufacturer: Delta Electronics
Description: FAN AXIAL 80X80X25.4MM 5V WIRE
In Stock: 33
Manufacturer: Delta Electronics
Description: FAN AXIAL 80X80X38MM 12V WIRE
In Stock: 0
Manufacturer: Delta Electronics
Description: FAN AXIAL 80X38MM 12VDC WIRE
In Stock: 1395
Manufacturer: Delta Electronics
Description: FAN AXIAL 80X15MM 12VDC WIRE
In Stock: 128
Manufacturer: Delta Electronics
Description: FAN AXIAL 80X15MM 12VDC WIRE
In Stock: 0
