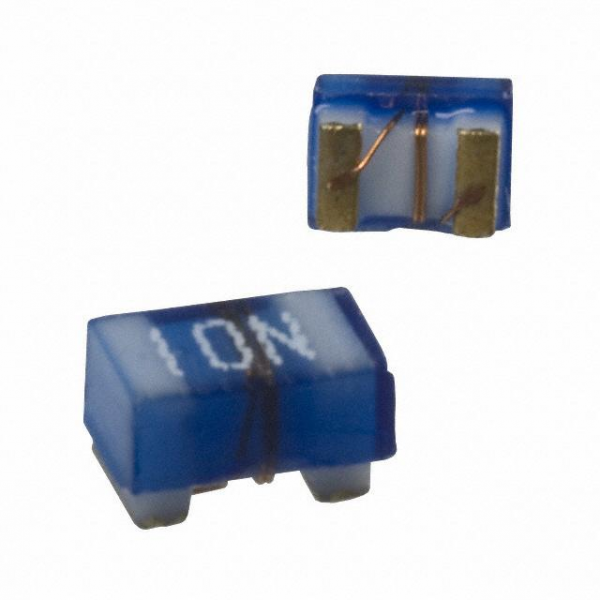

| Part Number | PM0603-R12J-RC |
|---|---|
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Alumina |
| Inductance | 120nH |
| Tolerance | ±5% |
| Current Rating | 300mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 790 mOhm |
| Q @ Freq | 32 @ 250MHz |
| Frequency - Self Resonant | 1.35GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Frequency - Test | 150MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.065" L x 0.041" W (1.65mm x 1.05mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
